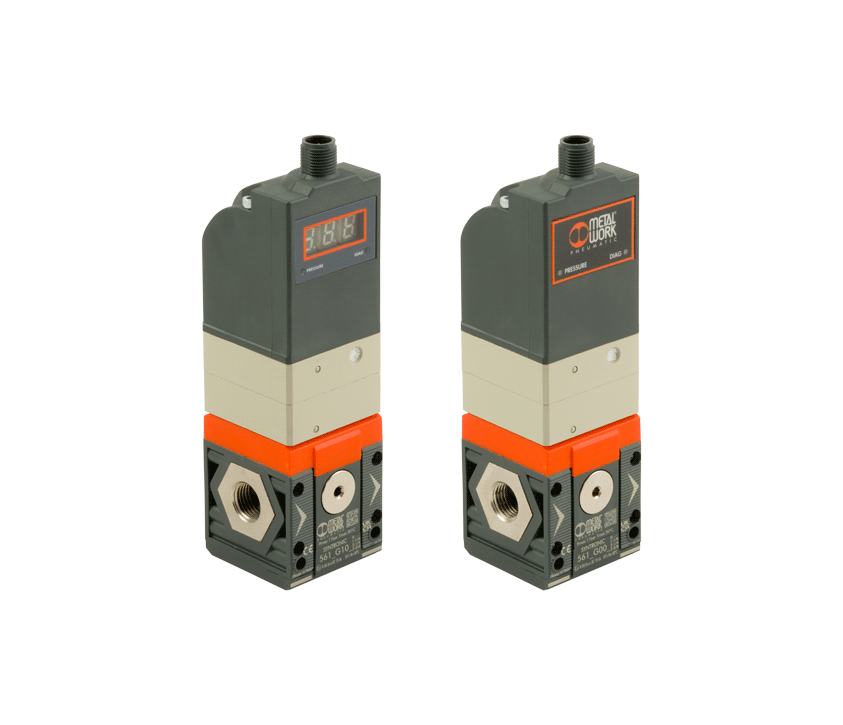

Proportional precision pressure regulator SYNTRONIC Series

Proportional precision pressure regulator SYNTRONIC Series

The range of Metal Work Proportional precision pressure regulators now includes a new device: SYNTRONIC. The SYNTRONIC Series is characterized by the main body, made of technopolymer, which mounts interchangeable 1/8", 1/4" and 3/8" bushings. It allows the achievement of a high flow rate in regulation (up to 2,800 Nl/min with 3/8" bushings).

The electronic part - completely new - is contained in a protective technopolymer casing, just as is the easy-to-read 3-digit type display.

Syntronic can be controlled remotely via a cable connection and M12x1 connector accepting commands in Volts or mA.

The central part, made of aluminium, contains two rolling diaphragms which allow a high flow rate and excellent dynamic behaviour, thanks to the reduction of friction.
Also for Syntronic the downstream pressure is relieved when the upstream pressure is set to zero; this allows, for example, to place the regulator between a valve and a cylinder because the air can flow in both directions: towards the cylinder with regulated pressure and back to the relieving valve.

pdf icon  View Atex Declaration of Conformity

pdf icon  View Atex user instructions

See product catalog See assembly instructions Buy online
